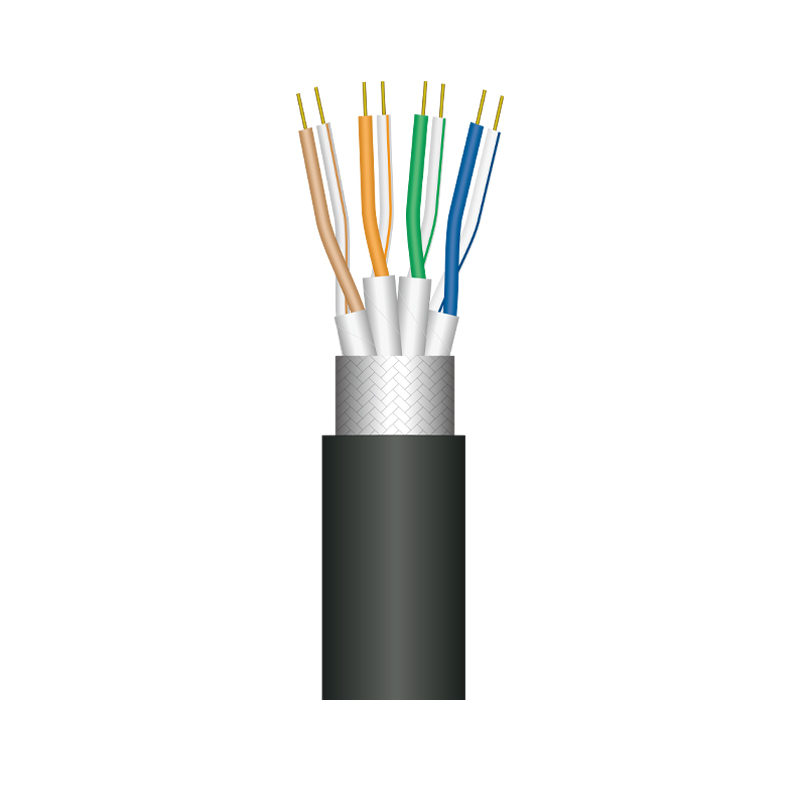

CA0005A

  • CAT6a shielded network cable, conductors using solid core bare copper wire, polyethylene insulation, aluminum foil shielding, PVC sheath, conventional sheath color is blue-gray
  • Use a cross-skeleton to separate 4 pairs of twisted pair cables to enhance the anti-crosstalk ability, suitable for fixed installation and wiring use
  • Meets YD/T1019-2013 standard and TIA/EIA568 standard and can be customized to meet flame retardant standards: lEC60332-1
  • Packing length 305 meters/carton
Modell: CA0005ACategories: Network
Kontakta oss

Produktparametrar

Product Structure
No. of Conductors 7
Conductor Size 26 AWG
Conductor Specification 7×32
Conductor Material BC
Insulation Material FPE
Insulation Thickness 0.25mm
Insulation O.D. 1.00mm
Insulation Color WH/BU,BU,WH/OG,OG,WH/GN,GN,WH/BN,BN
Shielding Method Al foil sub-shield & TC braided
Shielding Material Al foil
Shielding Coverage 100% & 35%
Shielding Grounding Wire /
Outer Sheath Material PVC
Outer Sheath Thickness 0.95mm
Outer Sheath O.D. 7.00mm
Electrical Properties
Characteristic Impedance 100±5ohm(1~250MHz)
Lag Time ≤45ns/100m(1~100MHz）
DC Resistance ≤14.20ohm/100m
Unbalanced DC Resistance ≤4.0%
Transmission Speed 0.69
Other Properties
Temperaturområde -20℃~+60℃
Before aging:
Tensile Strength ≥13.5Mpa
Elongation Rate ≥150%
After aging:
Tensile Strength ≥12.5Mpa
Elongation Rate ≥150%
RoHS Compliance YES
