CA0004A

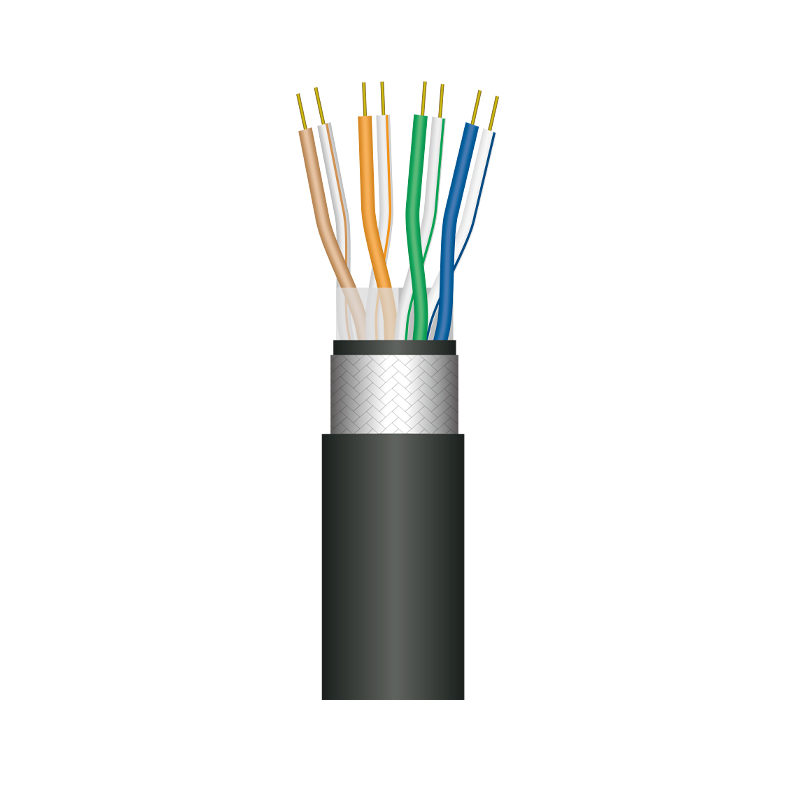

  • CAT6a double shielded network cable, the conductor is high-quality and high-purity oxygen-free copper wire stranded 24AWG, foamed polyethylene insulation, PVC sheath, conventional sheath color is black
  • Double shielding, aluminum foil sub-shielding plus tinned copper wire total shielding, suitable for fixed installation wiring and mobile performance use
  • Meets YD/T1019-2013 standard and TIA/EIA568 standard and can be customized to meet flame retardant standards: IEC60332-1
  • UV resistance: UL1581720h
Modell: CA0004ACategories: Network
Kontakta oss

Produktparametrar

Product Structure
No. of Conductors 1
Conductor Size 24 AWG
Conductor Specification 1×0.52±0.005mm
Conductor Material BC
Insulation Material PE
Insulation Thickness 0.20mm
Insulation O.D. 0.96mm
Insulation Color BU/WH,OG/WH,GN/WH,BN/WH
Inner Sheath Material PVC
Inner Sheath Thickness 1.20mm
Inner Sheath O.D. 6.50mm
Shielding Method TC braided
Shielding Material 144/0.1 TC
Shielding Coverage 80%
Shielding Grounding Wire /
Outer Sheath Material PVC
Outer Sheath Thickness 0.65mm
Outer Sheath O.D. 8.40mm
Electrical Properties
Characteristic Impedance 100±5ohm(1~250MHz)
Lag Time ≤45ns/100m(1~100MHz）
DC Resistance ≤9.5ohm/100m
Unbalanced DC Resistance ≤4.0%
Transmission Speed 0.69
Other Properties
Temperaturområde -20℃~+60℃
Before aging:
Tensile Strength ≥13.5Mpa
Elongation Rate ≥150%
After aging:
Tensile Strength ≥12.5Mpa
Elongation Rate ≥150%
RoHS Compliance YES
