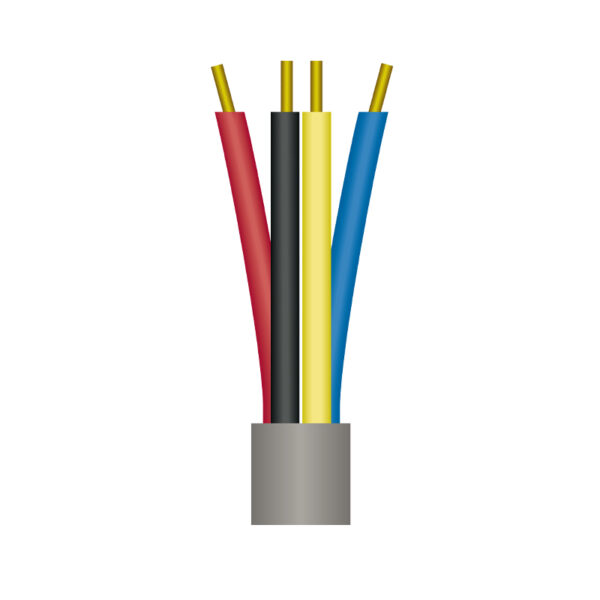

SP0425H

Engineering and fixed installation use, high-quality and high-purity oxygen-free copper wire conductor with 80 0.20mm monofilament twisted to 2.5mm² cross-section
Polyvinyl chloride insulation, polyvinyl chloride sheath material, the sheath is twisted, suitable for pipe wearing, cost-effective
Flame retardant models can be customized

Modell: SP0425HCategories: Lautsprecher, Bulk Cables

Kontaktiere uns

Produktparameter

Product Structure
No. of Conductors	4
Conductor Size	2.06mm
Conductor Specification	80 x 0.20mm
Conductor Material	BC
Insulation Material	PVC
Insulation Thickness	0.80mm
Insulation O.D.	3.70mm
Insulation Color	BL, RD, YE, BU
Shielding Method	/
Shielding Material	/
Shielding Coverage	/
Shielding Grounding wire	/
Outer Sheath Material	PVC
Outer Sheath Thickness	1.20mm
Outer Sheath O.D.	11.40mm
Electrical Properties
Conductor Resistance at 20°C max	7.98 Ω/km
Capacitance between Conductors	/
Conductor & Ground Capacitance	/
Gewicht	200.0 kg/km
Temperaturbereich	-20℃ ~ +60 °C
Characteristic Impedance	/
Attenuation	/
