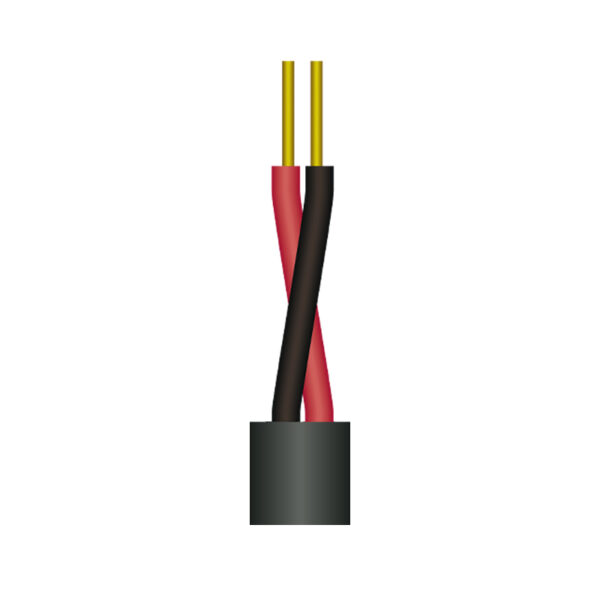

SP0225A-M

Mobile use suitable for mobile performance applications, high-quality and high-purity conductor with oxygen-free copper wire stranded 2 x 2.5mm²
Sufficient cross-section to reduce resistance and transmission loss, conductor with double twisted structure, monofilament diameter 0.10mm oxygen-free copper wire stranding, better sheath feeling, soft and bending resistance
Cable structure adopts embedded technology, making the structure very stable, the whole wire has the advantages of super soft, torsional resistance, tensile resistance, etc

Modell: SP0225A-MCategories: Lautsprecher, Bulk Cables

Kontaktiere uns

Produktparameter

Product Structure
No. of Conductors	2
Conductor Size	2.35mm
Conductor Specification	7 x 46 x 0.10mm
Conductor Material	BC
Insulation Material	PVC
Insulation Thickness	0.30mm
Insulation O.D.	3.00mm
Insulation Color	BL,RD
Shielding Method	/
Shielding Material	/
Shielding Coverage	/
Shielding Grounding wire	/
Outer Sheath Material	PVC
Outer Sheath Thickness	1.40mm
Outer Sheath O.D.	8.80mm
Electrical Properties
Conductor Resistance at 20°C max	7.98 Ω/km
Capacitance between Conductors	/
Conductor & Ground Capacitance	/
Gewicht	125.0 kg/km
Temperaturbereich	-20℃ ~ +60 °C
Characteristic Impedance	/
Attenuation	/
