DM02022A

DMX512 lighting signal control cable, standard characteristicimpedance 1200, fixed installation or pipe use, high-quality andhigh-purity oxygen-free copper wire stranded 2 x 24 AWG conductor
Insulation adopts retraction-resistant cross-linked polyethyleneinsulation,low capacitance,two-core twisted aluminum foilshielding with a coverage rate of 100% and a braided mesh doubleshielding with coverage of 90%, stronger anti-interference abilityand at the same time adds a grounding wire between the aluminumfoil and the braided mesh to improve welding efficiency

Modell: DM02022ACategories: DMX AES/EBU

Kontaktiere uns

Produktparameter

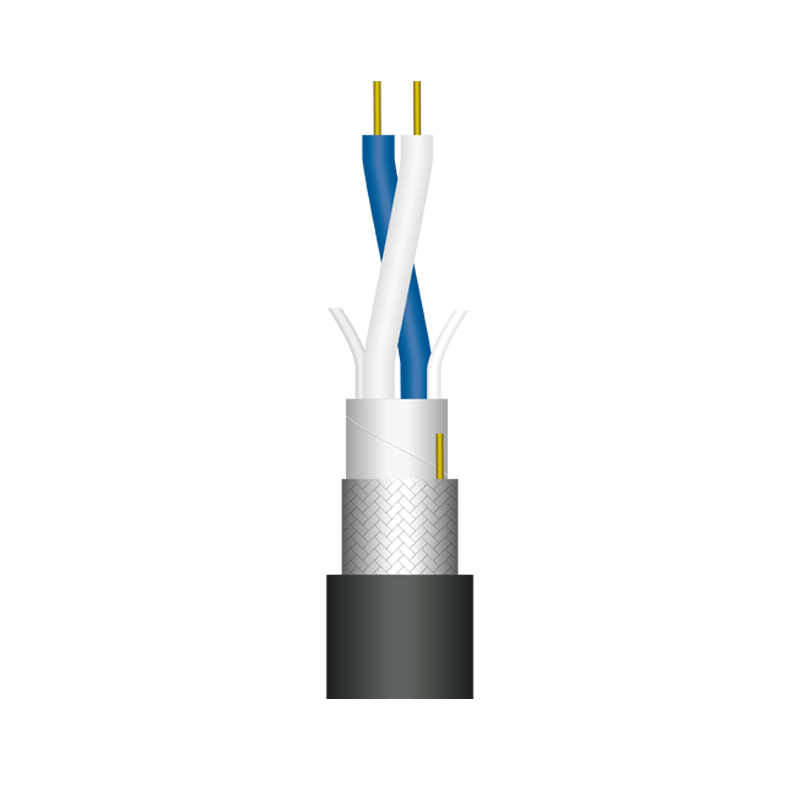

Product Structure
No. of Conductors	2
Conductor Size	24AWG
Conductor Specification	28×38
Conductor Material	TC
Insulation Material	PE
Insulation Thickness	0.62mm
Insulation O.D.	l.85mm
Insulation Color	BU,WH
Shielding Method	Al foil Braided
Shielding Material	Al foil & TC 128/0.10
Shielding Coverage	100% & 90%
Shielding Grounding wire	24AWG(28 x 38)TC
Outer Sheath Material	PVC
Outer Sheath Thickness	0.90mm
Outer diameter of the outer sheath	6.00mm
Electrical Properties
Conductor Resistance at 20°C max	86.4 Ω/km
Capacitance between Conductors	≤80pF/m
Conductor & Ground Capacitance	≤100 pF/m
Gewicht	49.2kg/km
Temperaturbereich	-20℃ ~ +60 °C
Characteristic Impedance	120Ω ± 10
Attenuation	/
