DM02020A-M

DMX512 lighting signal control cable, standard characteristicimpedance 1200,high-quality and high-purity conductor withoxygen-free copper wire stranded 2 x 24 AWG
Insulation is made of foamed polyethylene, two-core twistedaluminum foil shielding 100% coverage and braided mesh doubleshielding with braided coverage of90%, stronger anti-interferenceability and at the same time a grounding wire is added betweenaluminum foil and braided mesh to improve soldering efficiency

Modell: DM02020A-MCategories: DMX AES/EBU

Kontaktiere uns

Produktparameter

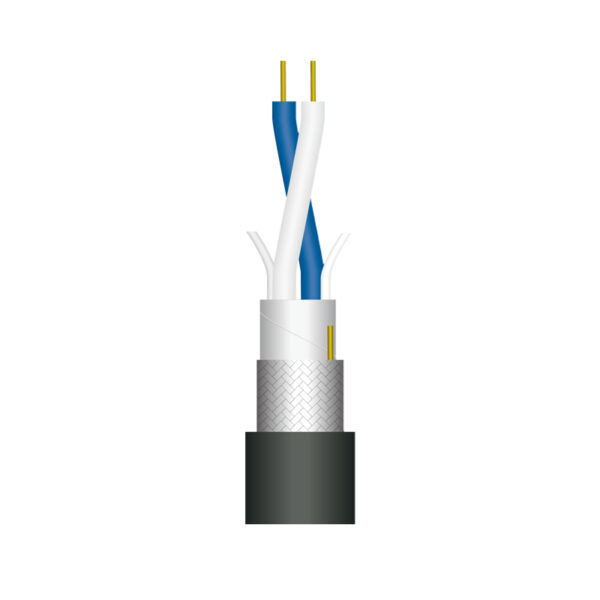

Product Structure
No. of Conductors	2
Conductor Size	24AWG
Conductor Specification	42×40
Conductor Material	BC
Insulation Material	FPE
Insulation Thickness	0.62mm
Insulation O.D.	l.80mm
Insulation Color	BU,WH
Shielding Method	Al foil & Braided
Shielding Material	Al foil & TC 128/0.10
Shielding Coverage	100% & 90%
Shielding Grounding wire	26AWG(30 x 40)BC
Inner Sheath Material	/
Inner Sheath Thickness	/
Inner Sheath O.D.	/
Outer Sheath Material	Elastic PVC
Outer Sheath Thickness	1.20mm
Outer Sheath O.D.	6.50mm
Electrical Properties
Conductor Resistance at 20°C max	90.0 Ω/km
Capacitance between Conductors	≤80pF/m
Conductor & Ground Capacitance	≤100 pF/m
Gewicht	55.5kg/km
Temperaturbereich	-20℃ ~ +60 °C
Characteristic Impedance	120Ω ± 10
Attenuation	≤20db/100m@10MHz
