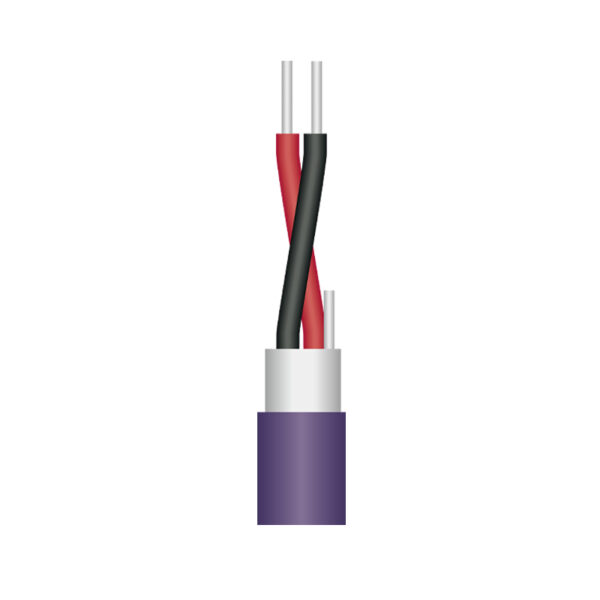

AID02022P

  • AES/EBU digital audio cable, standard characteristic impedance 110Ω, fixed installation or through-pipe use. Conductor is high-quality high-purity tinned oxygen-free copper wire stranded 2 x 24 AWG
  • Tinned copper monofilament oxidation resistance, easy to weld. Insulation using expanded polyethylene insulation, low capacitance, two-core twist plus aluminum foil shielding with 100% coverage, strong anti-interference ability
  • The sheath is polyvinyl chloride material, the sheath is twisted, suitable for pipe wearing
модел: AID02022PCategories: Audio, Bulk Cables
Свържете се с нас

Параметри на продукта

Product Structure
No. of Conductors 2
Conductor Size 24AWG
Conductor Specification 28 x 38
Conductor Material TC
Insulation Material FPE
Insulation Thickness 0.54mm
Insulation O.D. 1.70mm
Insulation Color BL, RD
Shielding Method Al foil
Shielding Material Al foil
Shielding Coverage 100%
Shielding Grounding wire 24AWG(28 x 38）TC
Outer Sheath Material PVC
Outer Sheath Thickness 0.60mm
Outer Sheath O.D. 4.70 mm
Electrical Properties
Conductor Resistance at 20°C max 90.8Ω/km
Capacitance between Conductors ≤80 pF/m
Conductor & Ground Capacitance ≤100 pF/m
Тегло 22.8 kg/km
Температурен диапазон -30℃ ~ +60℃
Characteristic Impedance 110Ω±10
Attenuation 10Mkz≤20db/100m
