AI04034H

Engineering and fixed installation use. The conductor is high-quality and high-purity oxygen-free copper wire stranded 4 x 22 AWG
Insulation adopts polyethylene insulation, low capacitance, four-core star twisting method, plus aluminum foil shielding with coverage rate of 100%, strong anti-interference ability, suitable for use in occasions with large environmental interference. The transmission distance is up to 300 meters, PVC sheath material, the sheath is twisted, cost-effective

модел: AI04034HCategories: Audio, Bulk Cables

Свържете се с нас

Параметри на продукта

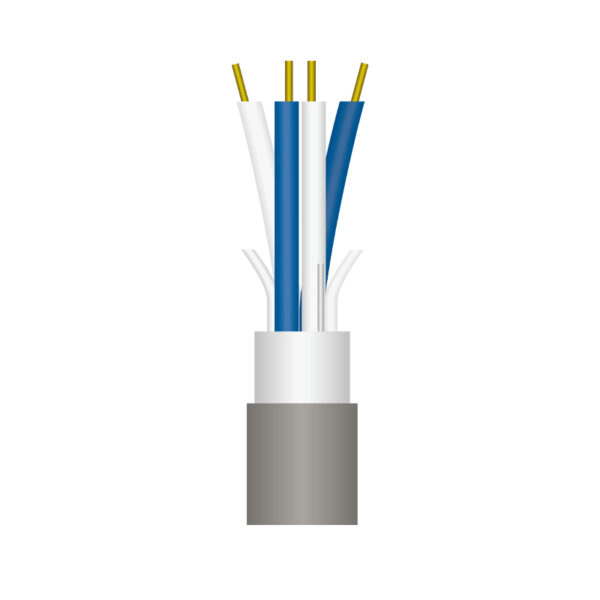

Product Structure
No. of Conductors	4
Conductor Size	22AWG
Conductor Specification	7 x 30
Conductor Material	BC
Insulation Material	PE
Insulation Thickness	0.27 mm
Insulation O.D.	1.30 mm
Insulation Color	WH, BU, WH, BU
Shielding Method	Al foil
Shielding Material	Al foil
Shielding Coverage	100%
Shielding Grounding wire	24AWG（28 x 38）TC
Outer Sheath Material	PVC
Outer Sheath Thickness	0.50mm
Outer Sheath O.D.	4.20 mm
Electrical Properties
Conductor Resistance at 20°C max	53.93 Ω/km
Capacitance between Conductors	≤150 pF/m
Conductor & Ground Capacitance	≤250 pF/m
Тегло	29.6 kg/km
Температурен диапазон	-20℃ ~ +60 °C
Characteristic Impedance	/
Attenuation	/
