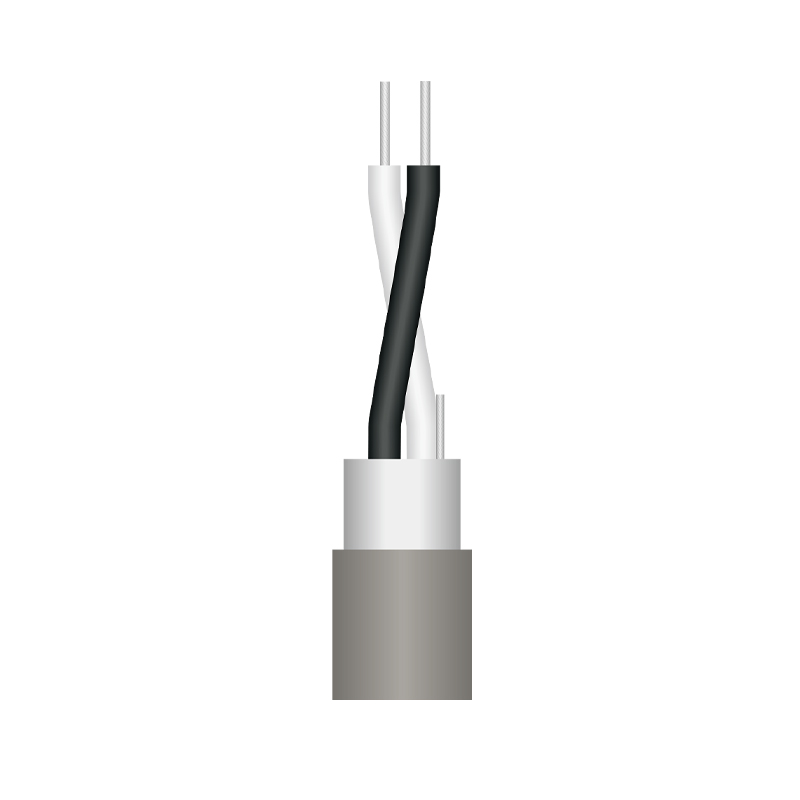

AI02034H-T

Engineering and fixed installation use. The conductor is high-quality and high-purity tinned oxygen-free copper wire stranded 2 x 22 AWG
Tinned monofilament oxidation resistance, easy to weld, insulation using retraction-resistant cross-linked polyethylene insulation, low capacitance, two-core twist plus aluminum foil shielding with 100% coverage, strong anti-interference ability, PVC sheath material, sheath twisted, suitable for pipe wearing, cost-effective

модел: AI02034H-TCategories: Audio, Bulk Cables

Свържете се с нас

Параметри на продукта

Product Structure
No. of Conductors	2
Conductor Size	22AWG
Conductor Specification	19 x 36
Conductor Material	TC
Insulation Material	PE
Insulation Thickness	0.42mm
Insulation O.D.	1.60mm
Insulation Color	BL,WH
Shielding Method	Al foil
Shielding Material	Al foil
Shielding Coverage	100%
Shielding Grounding wire	22AWG（19 x 36）TC
Outer Sheath Material	PVC
Outer Sheath Thickness	0.65mm
Outer Sheath O.D.	4.60mm
Electrical Properties
Conductor Resistance at 20°C max	56.8Ω/km
Capacitance between Conductors	≤100 pF/m
Conductor & Ground Capacitance	≤160 pF/m
Тегло	26.0kg/km
Температурен диапазон	-20℃ ~ +60 °C
Characteristic Impedance	/
Attenuation	/
