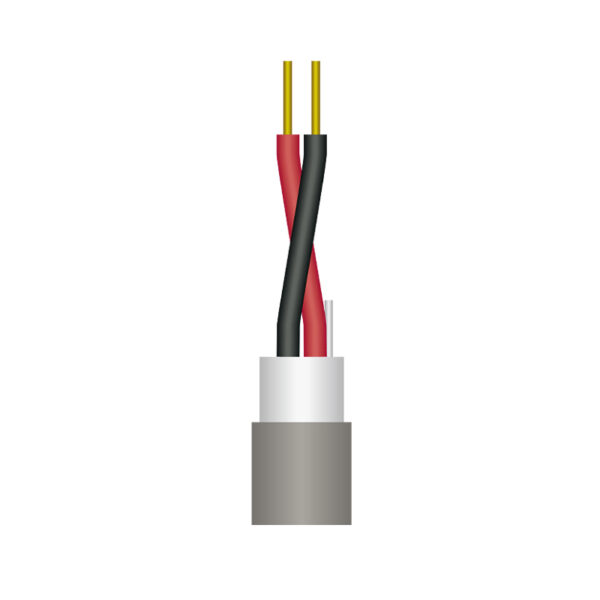

AI02034H

Engineering and fixed installation use. The conductor is high-quality and high-purity oxygen-free copper wire stranded 2 x 22 AWG
Insulation using retraction-resistant cross-linked polyethylene insulation, low capacitance, two-core twist plus 100% coverage of aluminum foil shielding, strong anti-interference ability, PVC sheath material, sheath twisted, outer diameter only 3.8mm, suitable for pipe wearing, cost-effective

модел: AI02034HCategories: Audio, Bulk Cables

Свържете се с нас

Параметри на продукта

Product Structure
No. of Conductors	2
Conductor Size	22AWG
Conductor Specification	7 x 30
Conductor Material	BC
Insulation Material	PE
Insulation Thickness	0.22mm
Insulation O.D.	1.20mm
Insulation Color	BL,RD
Shielding Method	Al foil
Shielding Material	Al foil
Shielding Coverage	100%
Shielding Grounding wire	24AWG(28 x 38）TC
Outer Sheath Material	PVC
Outer Sheath Thickness	0.60mm
Outer Sheath O.D.	3.80mm
Electrical Properties
Conductor Resistance at 20°C max	53.93Ω/km
Capacitance between Conductors	≤150 pF/m
Conductor & Ground Capacitance	≤250 pF/m
Тегло	20.3kg/km
Температурен диапазон	-20℃ ~ +60 °C
Characteristic Impedance	/
Attenuation	/
